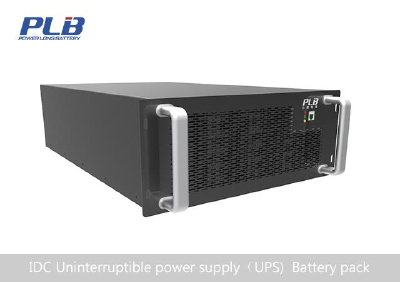

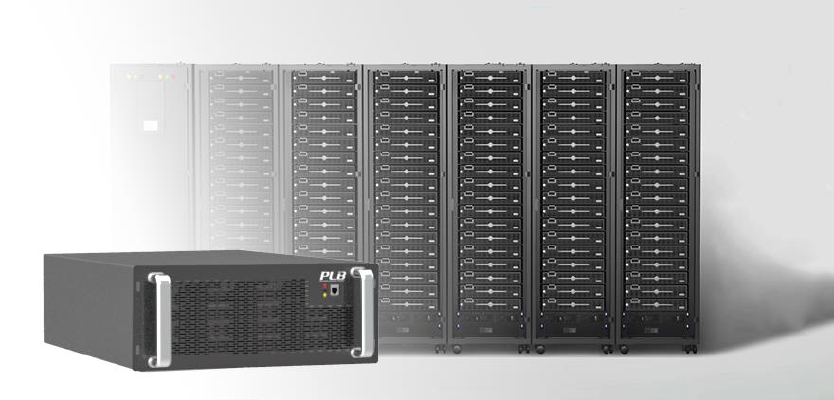

IDC Uninterruptible Power Supply UPS  Lithium Battery Pack

IDC Uninterruptible Power Supply UPS Lithium Battery Pack

  • Min.Order Quantity: 100 Sets
  • Supply Ability: 10000000 Sets per Month
  • Port: china ports
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2014-07-23
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  china
  • Brand Name:  Power Long
  • Model Number:  60001

Product Feature Description:

  • Utilized special power auto battery ,which is durable and charging & discharging cycles ≥2000times.

  • Industry leading PACK process patent portfolio to ensure the combination stability and security.

  • To facilitate battery module disassembly, battery module packed with ABS board, the upper & bottom side and flank with EVA to improve the battery block anti-shock, puncture resistance.

  • Battery Management System in accordance with the power auto level BMS with battery system voltage measurement, over- charging/discharging protection, high temperature protection, low temperature alarm, SOC detection, etc.


  • Place of Origin:  china
  • Brand Name:  Power Long
  • Model Number:  60001

Battery Pack General Parameters

No.ItemDescriptionRemarks
1Battery Cell26650 3.2AhLiFePO4 Cell
2Combination72Series-5Parallels

3Moninal Voltage230.4V

4Nominal Capacity16Ah

5Max. Continuous Discharge Current45A

6Max. Charge Voltage262.8V

7Discharge Cut-off Voltage180V

8Standard Charge Current3.2A

9Max. Continuous Charge Current8A

10Impedance400mΩ

11Charge Method (CC/CV)DC Charge

12Weight (Approx.)54±1Kgs

13Protection GradeIP20

14Cycle Life1600次≥80% CapacityCharge@0.5C / Discharge @1C
15Thermal ManagementNatural cooling

16Cell Block CombinationVoltage:≤2mV
Impedance:≤2mΩ
Capacity: ≤30mAH
PLB internal standards
17Charging Operation Temp.(℃)0~45Temp. under 0℃ heating via PTC and over 0℃ to charge
18Discharging Operation Temp.(℃)-10~40

19Humidity60±15%

20Outside Dimension404*654*172cm
