Product Details
- Place of Origin: china
- Brand Name: Power Long
- Model Number: INR26650-55A

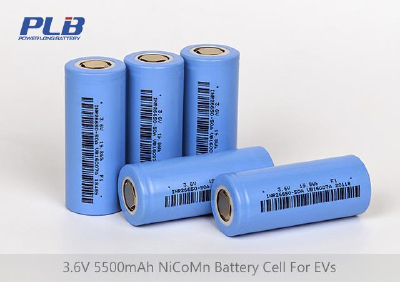

INR26650-55A NiCoMn cell has been successfully qualified with The National Mandatory Inspection , which widely used in electric buses, electric logistics trucks, electric special vehicles, power station, energy storage system and so on with high security, high consistency and high reliability characteristics.
- Place of Origin: china
- Brand Name: Power Long
- Model Number: INR26650-55A
| Items | Parameters | Suggestions |
|---|---|---|
| Nominal voltage | 3.60V | |
| Typical capacity | 5500mAh @ 1C | |
| Standard continuous discharge current | 1C | |
| Max. continuous discharge current | 3C | |
| Discharge cut-off voltage | 2.75 ±0.05 V | |
| Charge voltage | 4.20 ±0.05 V | Charge mode: CC/CV，Use a constant current, constant voltage (CC/CV) |
| Charge current | Standard: 0.5C Max.: 1C | |
| Inner resistance | ≤ 20 mΩ (AC Impedance, 1000 Hz) | |
| Operation temperature range | Charge: 0～45℃ | 0℃～ 45℃ |
| Discharge: -20～60℃ | -20℃～ 60℃ | |
| When the environment temperature is higher than 45℃，please pay attention to ventilation and heat rejection. | ||
| Storage temperature range | 1 year：-20～25℃ 85％RH Max 3months：-20～45℃ 90％RH Max 1 month：-20～60℃ 90％RH Max | Recommended long-term storage temperature is 15~25℃ |
| Life Cycle | >1000times | 1C ,80%DOD |
| Weight | About 95g | |

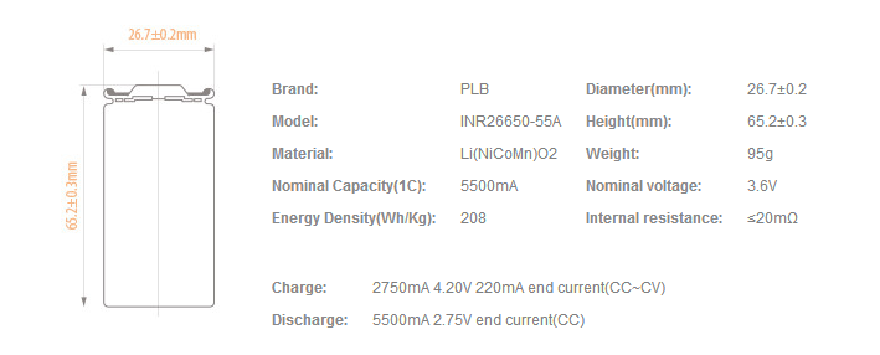

| Size（D*H） | Height : 65.2±0.3mm ; Diameter: 26.7±0.2mm | |
| Application | Power automotive, logistic truck , passenger bus, sedan, telecommunication base station, UPS ,etc. | |
