Product Details
- Place of Origin: china
- Brand Name: Power Long
- Model Number: IFR26650-35A

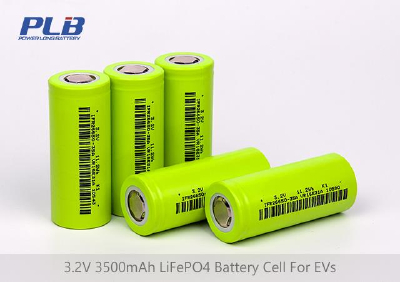

IFR26650-35A LiFePO4 battery is the upgraded one base on the older generation of 26650 lithium-ion rechargeable cell. it has been successfully passed The National Mandatory Inspection and widely used in electric buses, electric cars, electric logistics vehicles and electric motors and so on with high safety ,high consistency and high reliability characteristics.
- Place of Origin: china
- Brand Name: Power Long
- Model Number: IFR26650-35A

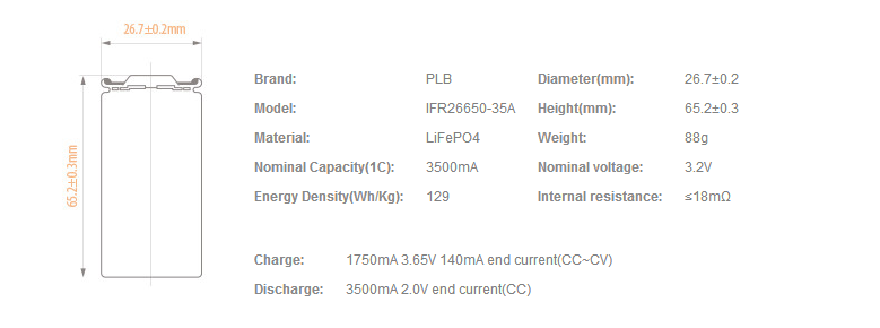

| Items | Parameters | Suggestions |
|---|---|---|
| Nominal voltage | 3.20V | |
| Typical capacity | 3500mAh @ 1C | |
| Standard continuous discharge current | 1C | |
| Max. continuous discharge current | 5C | |
| Discharge cut-off voltage | 2.00 ±0.05 V | |
| Charge voltage | 3.65 ±0.05 V | Charge mode: CC/CV，Use a constant current, constant voltage (CC/CV) |
| Charge current | Standard: 0.5C Max.: 1C | |
| Inner resistance | ≤ 16 mΩ (AC Impedance, 1000 Hz) | |
| Operation temperature range | Charge: 0～45℃ | 0℃～ 45℃ |
| Discharge: -20～60℃ | -20℃～ 60℃ | |
| When the environment temperature is higher than 45℃，please pay attention to ventilation and heat rejection. | ||
| Storage temperature range | 1 year：-20～25℃ 85％RH Max 3months：-20～45℃ 90％RH Max 1 month：-20～60℃ 90％RH Max | Recommended long-term storage temperature is 15~25℃ |
| Life Cycle | >2000times | 1C ,80%DOD |
| Weight | About 88g | |
| Size（D*H） | Height : 65.2±0.3mm ; Diameter: 26.7±0.2mm | |
| Application | Power automotive, logistic truck , passenger bus, sedan, etc. | |
